Allegra 2:2
PanaluxHeads

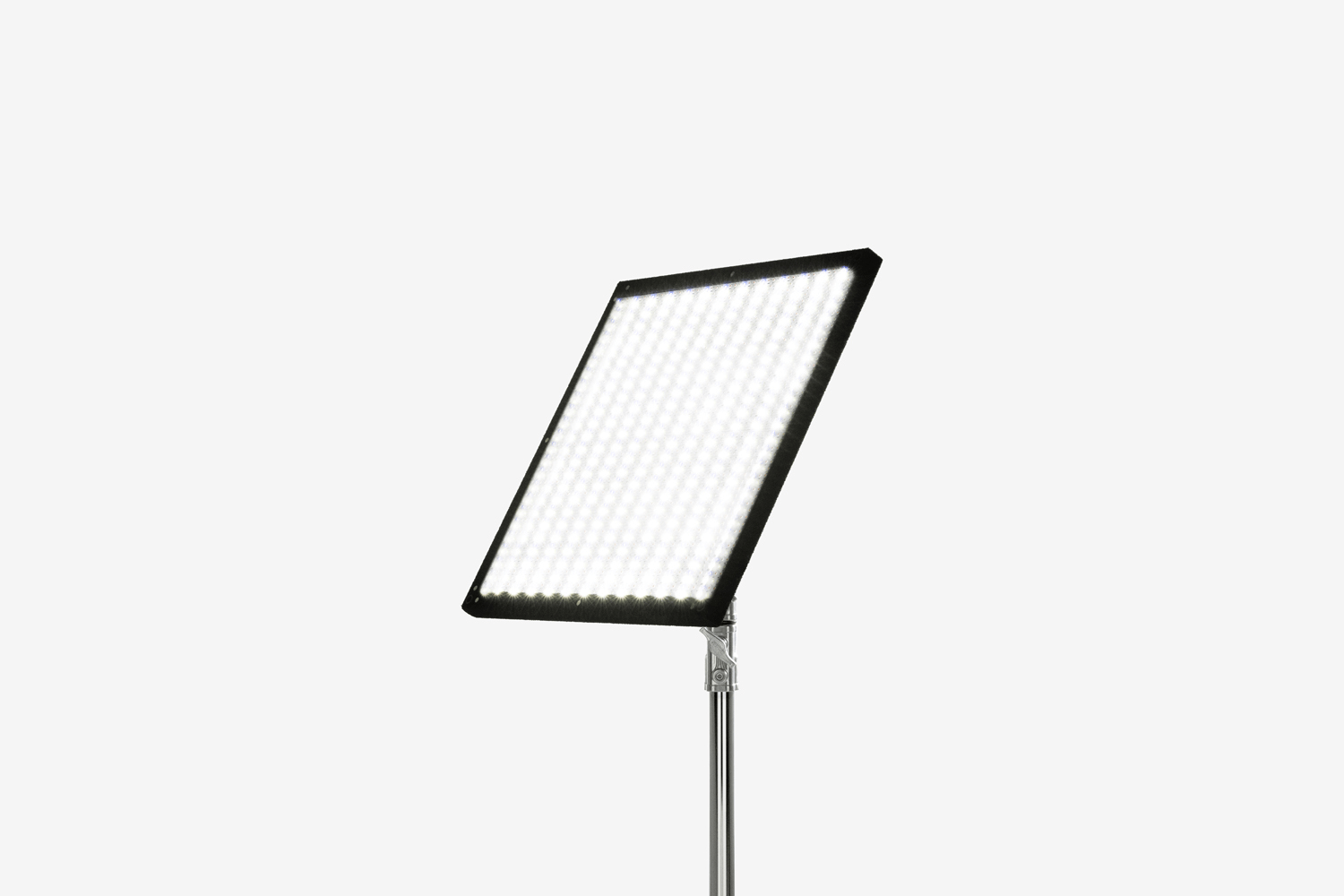

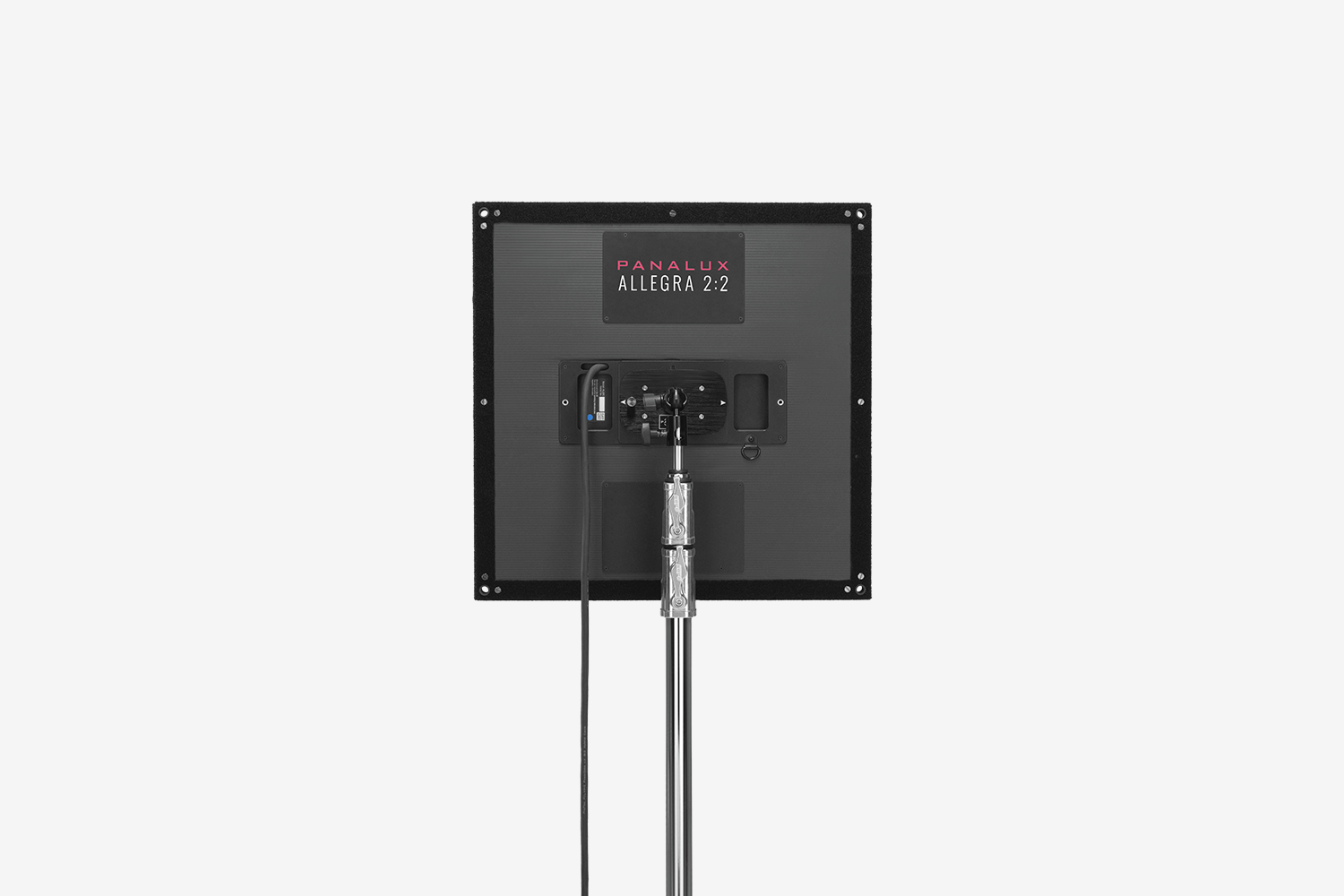

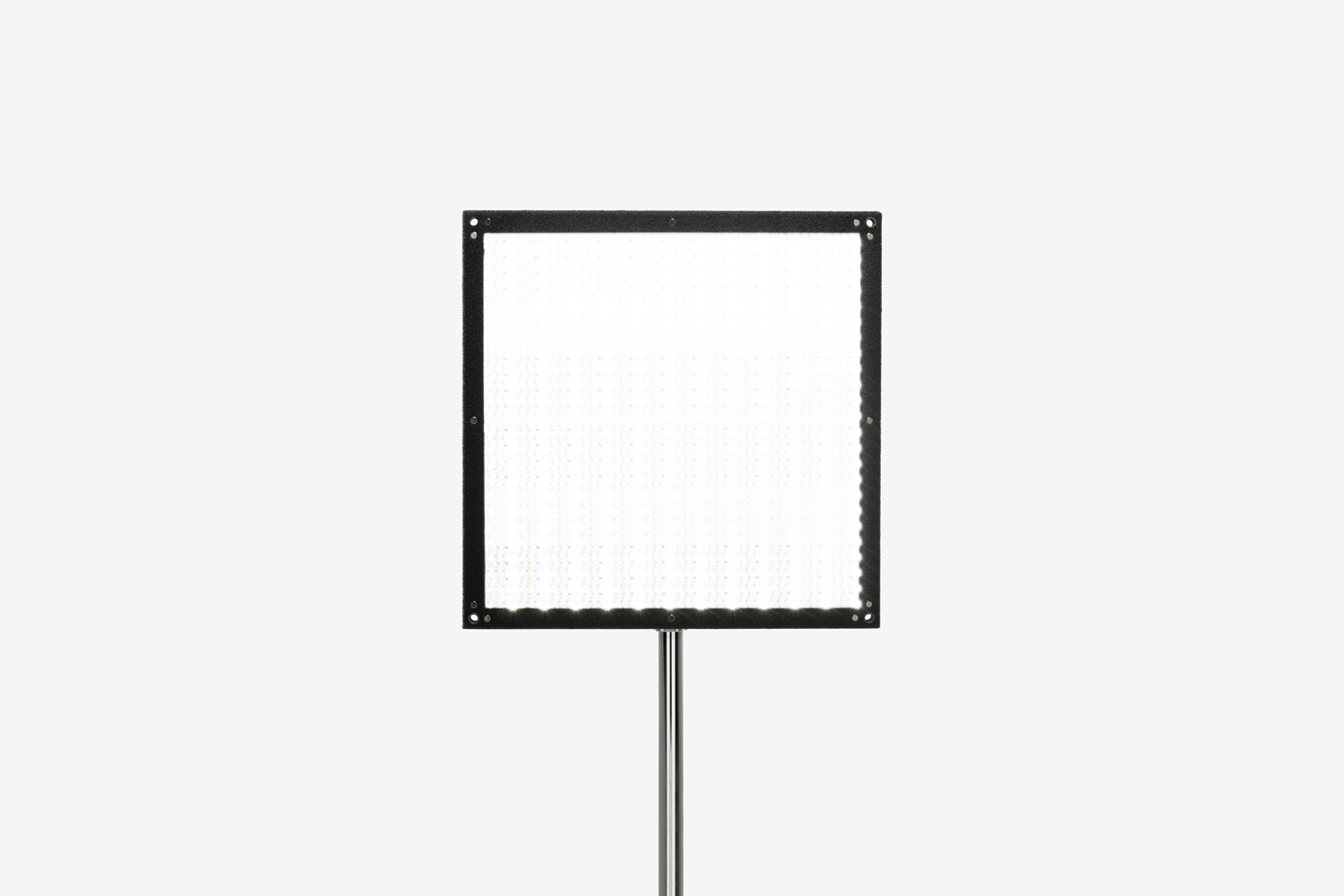

The bi-color Panalux Allegra 2:2 LED head delivers tunable white-light output from 2700K to 6500K. The fixtures’ LED chip set delivers a consistent, broad, and even spectrum with the highest level of accuracy, ensuring precise color-temperature control and natural skin-tone rendering. The head operates in conjunction with the Panalux Allegra DMX LED Control, which features an onboard power supply, a simple, intuitive, fully featured user interface, and full connectivity options including native LumenRadio CRMX.
Product Details
| Manufacturer | Panalux |
|---|---|
| Model | Allegra 2:2 |
| Dimensions (mm)(in) | 533 x 533 x 20 |
| Variant | 2:2 |
| Light Source | LED |
| Power Draw (W) | 184 |
| Lux @ 3M (3200K) | 372 |
| Lux @ 3M (5600K) | 370 |
| TLCI | 93.7 |
| CRI | 93.7 |
| SSI | 80 (3200K) |
| Connector Type | Eco Mate 6+ PE Plug |
| CCT Range | 2700K-6500K |
| Light Aperture | 497 x 256 |
| Beam Angle Max (°) | 120 |
| High Speed Capability | Yes |
| Protection Rating | IP40 |
| Mounting | Kino mount/10mm D rings |
| Panalux SKU | HIO8SAR |
| Weight (kg)(lbs) | 2.204.85 |
Panalux Allegra bi-color LED heads offer tunable control from 2700K to 6500K. The units can be quickly placed in position via a range of mounting options, including a twist-lock omnimount plate, corner eyes for hanging via rope or cord, and D-rings for carabiners.
The heads operate in conjunction with the Panalux Allegra DMX LED Control, which features an onboard power supply and a simple, intuitive, fully featured user interface with the same menu structure that was developed for the Panalux Sonara range, providing familiarity and ease of use. Each Panalux Allegra DMX LED Control can control a number of panel combinations and can be powered by universal AC power or DC from 19V-36V. Control options include local control on the unit, wired DMX, and wireless DMX using LumenRadio protocol.

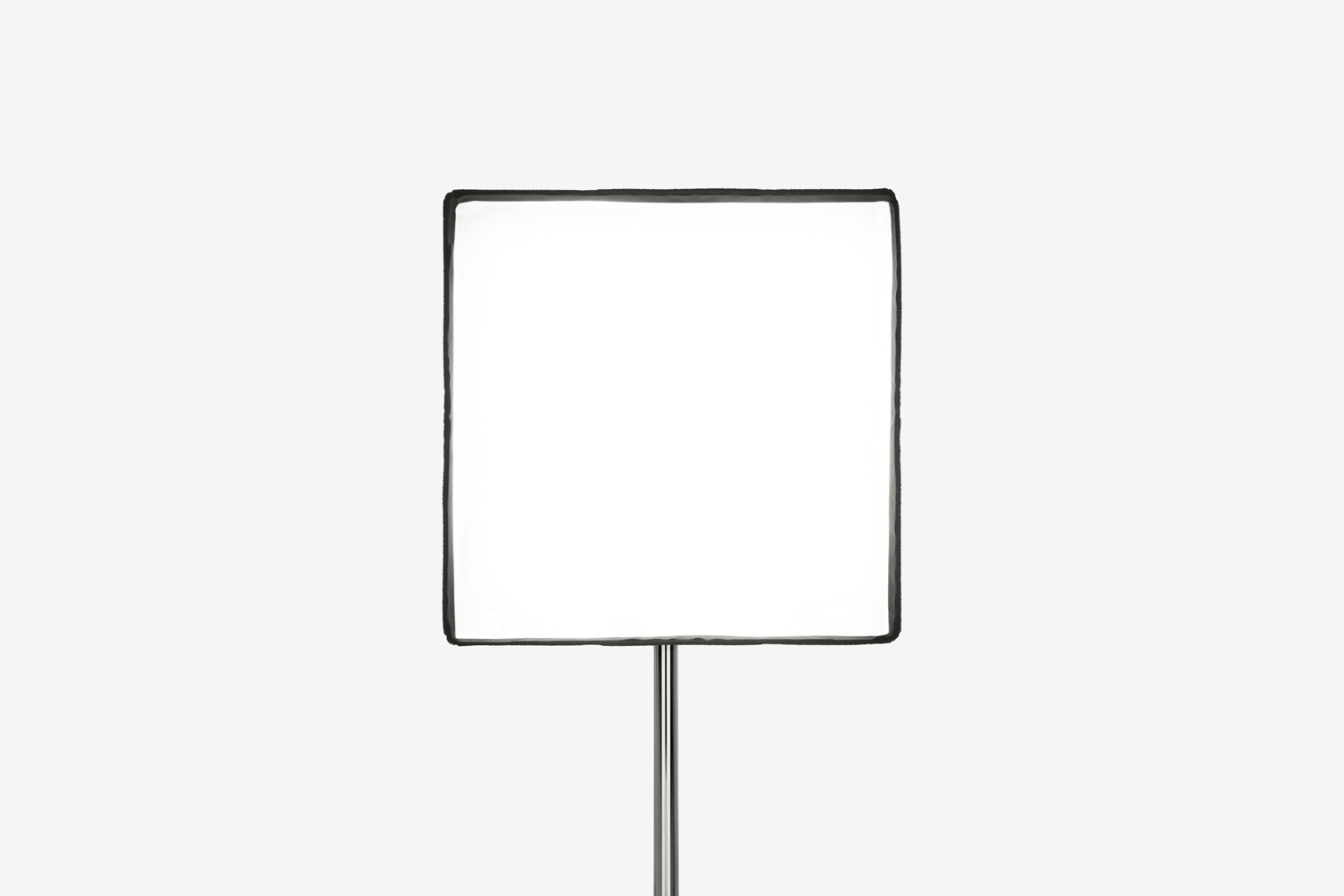

All Panalux Allegra kits come packaged with the head and textiles in a soft case and the power supply and mounting accessories in a protective hard case. Accessories include black skirt, various diffusion options, and louvers.
Only available from Panalux.
